DMX512 Led Controller

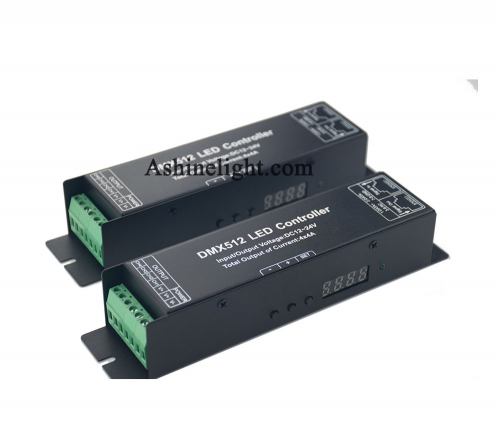

Product Name: DMX512 Led Controller
Model: SYC-DMX512
brief: Adopts advanced computer control chip,can receive the international DMX 512 standard digital control signals and converted into PWM controller signal to drive the LED
Enquiry:
Model: SYC-DMX512
brief: Adopts advanced computer control chip,can receive the international DMX 512 standard digital control signals and converted into PWM controller signal to drive the LED
Enquiry:
Technical Specification:
● Working temperature: -20-60 °C
● Supply voltage: DC12~24V
● Output: 3 channels
● External dimension: L177×W42×H33channel
● Packing size: L180ΧW95ΧH60(mm)
● Net weight: 201g
● Gross weight: 245g
● Static power consumption: <1W
● Output current: each channel 4A
● Output power: 5V:<60W, 12V:<144W, 24V:<288W
● DMX512standard:DMX512/1990

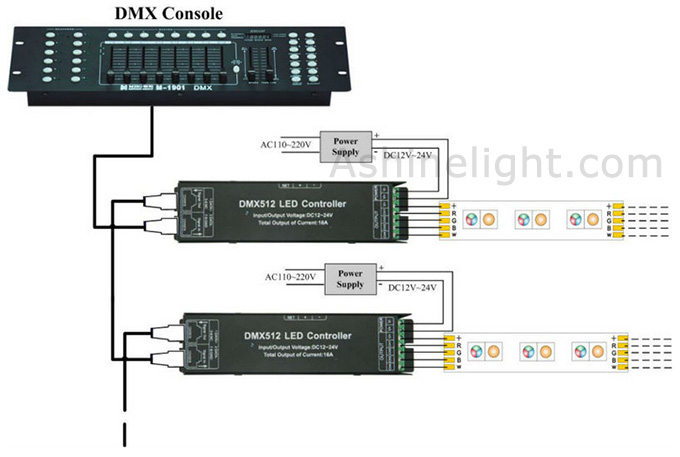

Connection
