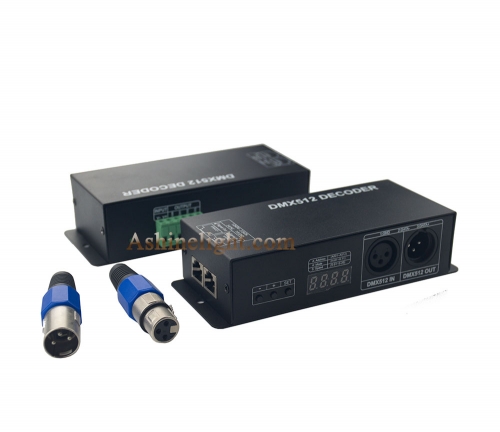

DMX512 Led Decoder
Product Name: DMX512 Led Decoder
Model: SYC-DMX512D
brief: Adopts advanced computer control chip,can receive the international DMX 512 standard digital control signals and converted into PWM controller signal to drive the LED
Enquiry:
Model: SYC-DMX512D
brief: Adopts advanced computer control chip,can receive the international DMX 512 standard digital control signals and converted into PWM controller signal to drive the LED
Enquiry:
Product Description
This DMX decoder adopts advanced computer control chip,can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED.It can be controlled by the DMX Console,and can connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode.Besides, this DMX decoder can be used as the synchronous controller to controlled the LED alone,it can realize the synchronous effects.This decoder adopt the digital tube to show the address code,and with 3 buttons to setting,make it more easy to used.
Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage:DC5V, DC12～24V Optional(please specify voltage when the order placed)
● Output current: each channel 4A or 8A (optional)
● External dimension: L166×W67×H41mm
● Packing size: L176×W84×H50(mm)
● Net weight: 360g
● Gross weight: 408g
● Output: 3/4 channels
● Output power(RGB): 8A -5V:<120W, 12V:<288W, 24V:<576W
● Output power(RGBW): 4A -5V:<80W, 12V:<192W, 24V:<384W
● DMX512standard：DMX512/1990
● Accessories: 1 pair of DMX512 IN and DMX512 OUT connectors

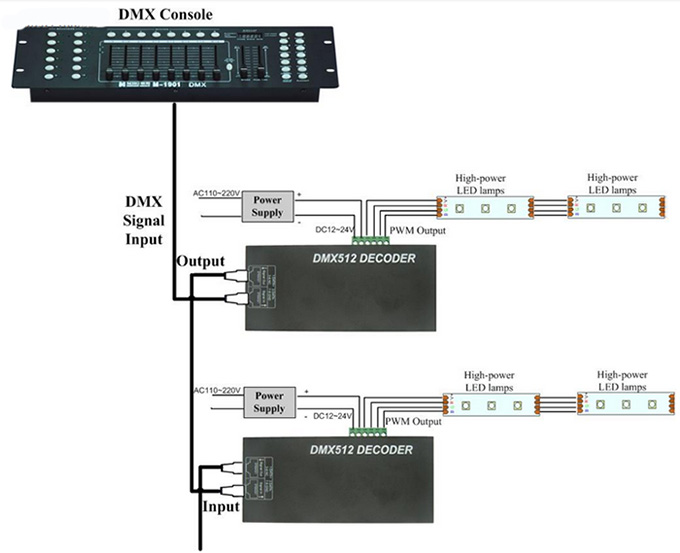

Connection
