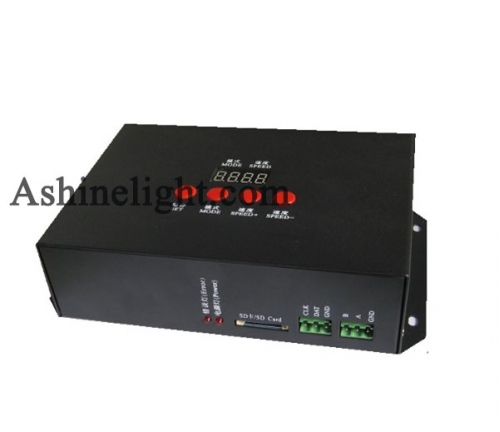

Dream Color Led Controller

System features
● 32—256 Gray level，Support software Gamma correction.
● Support the rules and special-shaped handle.
● Single-port output，can support 2048 pixels.
● Off-line(SD Card) control, play back content stored in the SD card.
● The controller Can save up to 16 files ,copy the file into SD card in order.
● The file in SD card must be named: 00_1.led, 01_1.led, 02_1.led…….
● Compatible with single and dual ICs, if you control a single line IC LED lights, without being connected to the CLK line.


Technical Specification:
Memory card：
● type：SD card（suggest using high-speed SD card）
● Capacity：128MB—2GB
● Format：FAT
● Store file：*.led

Physical Specification：
● Working temperature ：-30℃—85℃
● Working voltage：AC220V
● Working power：3W
● Size：217(L)mm * 134(W) mm * 60mm(H)
● Weight：1KG
● Signal port：3pin connect port

Support chips：
LPD6803,D705,1101,6909, 6912,UCS1903,UCS1909,UCS1912,WS2811,WS2801,WS2803,DMX512 etc..

NOTE：
● When T-1000 controller control less than 512 lamps the frame rate can reach 30fps. When T-1000 controls more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
● Use only in exchange 220v/50Hz or 110v/50HZ of voltage
