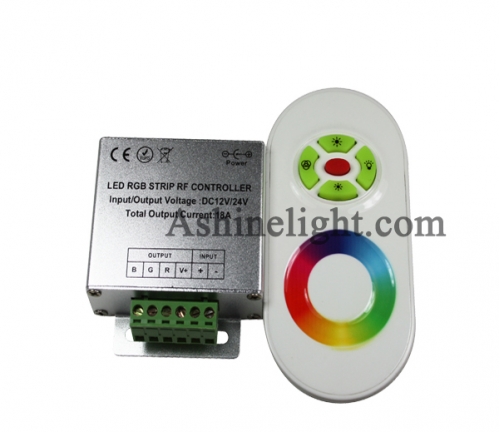

RF RGB 5key Touch Led Controller

Product Name:  RF RGB 5key Touch Led Controller

Model:  SYC-TL300

brief:  Used to controlle all kinds of constant voltage led lights

Enquiry:
Product Description:
This FR touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference .This controller is with power off memory function.

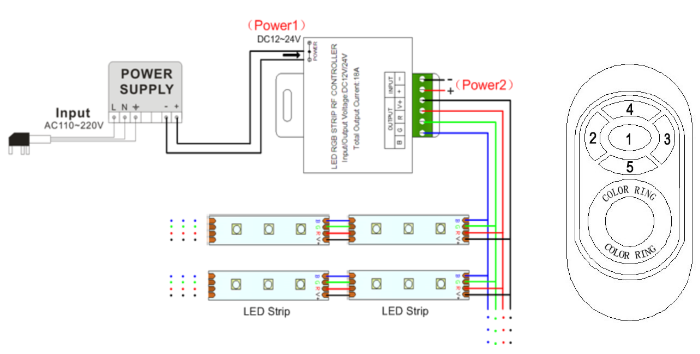

Wire Connection:

Function introduction:
1,Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.

2,In the open area remote control distance is over 15-30 meters.

3,the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.

Operation method:

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

Just the ON key is valid in OFF condition, to turn on the controller by press the ON key for the first time.the controller will be in the same mode as last time it save.


Key functions:

Key 1:ON/OFF

Key 2:light changing mode(Total 14 modes)

Key 3:color light/white light switching mode

Key 4:brightness/speed+

Key 5:brightness/speed-
