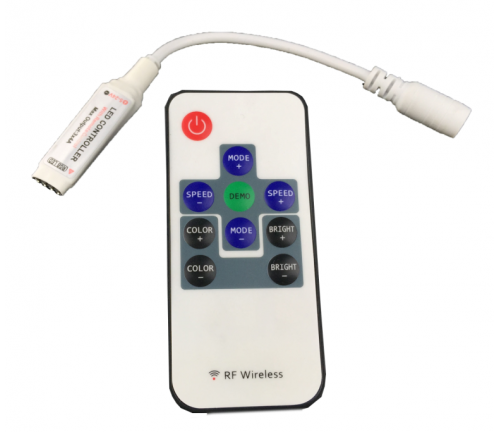

RF RGB Mini Led Controller

Product Description:
This RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.

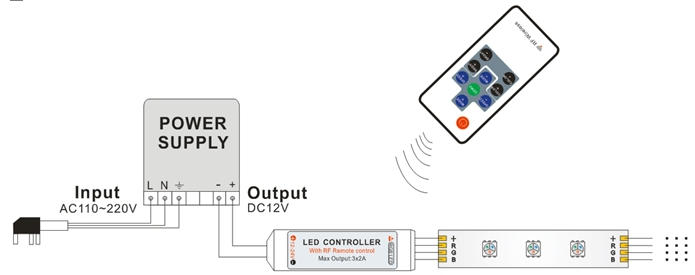

Wire Connection:


Technical Parameters:
● Working temperature:-20-60℃
● Input voltage:DC5-24V
● Output:3 circuit
● Connection mode:Common anode
● controller size:L40.0×W12.0×H5mm
● controller size:L85.9×W39.6×H6.9mm
● Net weight:35g
● Gross weight:40g
● Static power consumption:<0.5W
● Output current:<2A*3CH(each circuit)
● Output power: 5V:<30W, 12V:<72W

Caution:
1. Supply voltage of this product is DC5V- 24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
