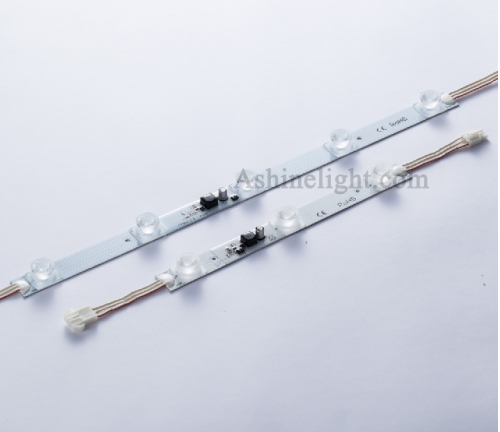

Sidelight 9W CREE SMD2525 Led Rigid Bar

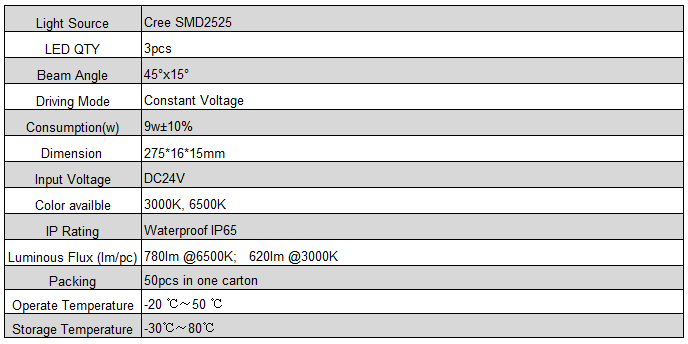

Parameter: High power Side lighting Cree SMD2525 3led injection led module-9w

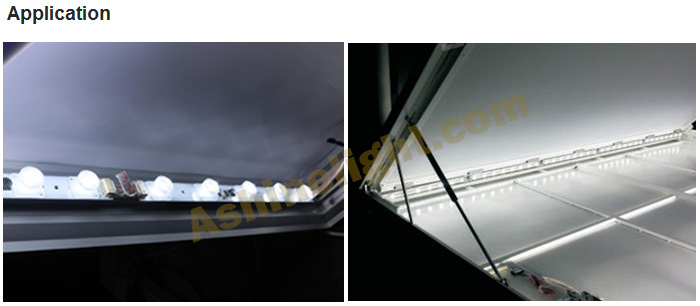

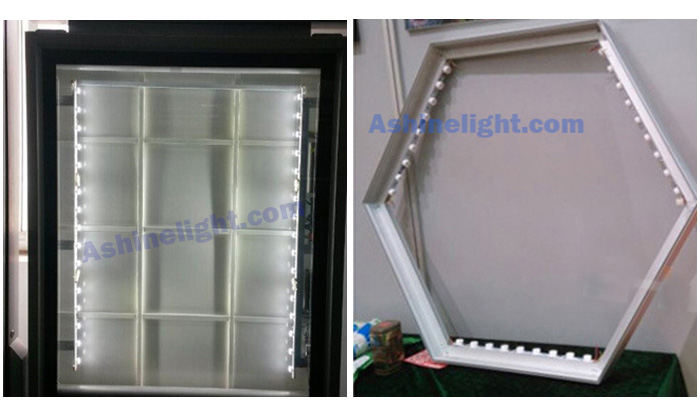

Application:
●15-25cm thickness big size light box side lighting.Double side light box.
●Best for 20cm depth double side light box,max distance 2.5 meter.

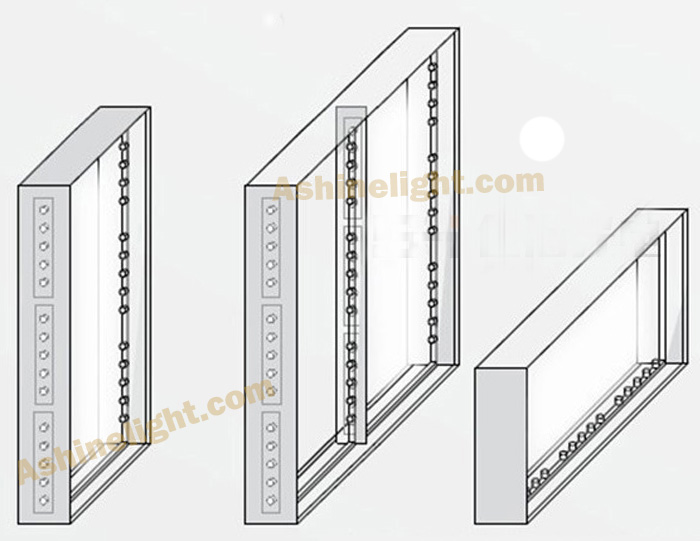

Installation
●Clean & remove all debris from the inside of signage/lightbox
●Position the module with double sided tape and stick on the back of board
●Potting glass glue on both side of led module or screwing is recommended as security.
●Use screws ,or silicon to secure at least every fifth LED module within the channel letter
